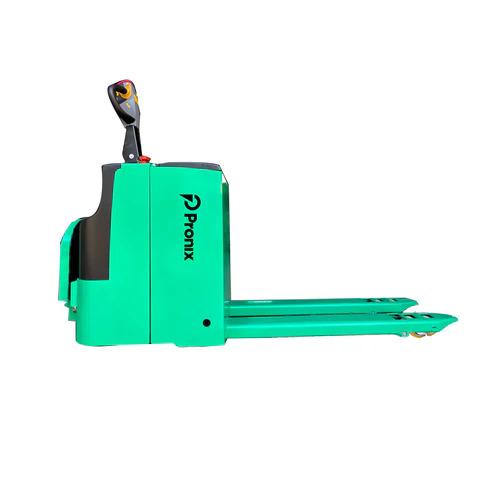

Pronix Electric Pallet Truck 2 Ton PNXEPT-20SD Specification: Brand - Pronix Model No. - PNXEPT -20SD Type - Electric Pallet Truck Operate Type - Stand Up Rated Capacity - 2000 Kg Load Center - 600 mm Drive Unit - Electric Wheelbase - 1495 mm Self Weight (Without Battery) - 320 Kg Driving Wheel - Ø230x75 mm Load Wheel - Ø80x70 mm Balance Wheel - Ø130x55 mm Balance Wheel Wheelbase - 498 mm Load Wheel Wheelbase - 500/390 mm Max. Lift Height - 200 mm Fork Ground Clearance - 85 mm Total Length - 1856 mm Total Width - 730 mm Fork Dimensions(L/W/H) - 1150X180X50 mm Fork Width - 680x570 mm Turning Radius - 1530 mm Traction Speed (Load/Unload) - 5/6 Km/h Lifting Speed (Load/Unload) - 25/30 mm/s Lowering Speed(Load/Unload) - 30/25 mm/s Max. Grade Ability(Load/Unload) - 6/15 % Brake Type - Electric at Butterfly Release Traction Motor - 1.5Kw/24V Lift Motor - 2.2Kw/24V Battery Volts/Ampere - 210Ah Battery Weight - 200 Kg Noise - 70 dB Description: Pronix Electric Pallet Truck 2 Ton PNXEPT-20SD is a reliable and efficient solution for moving heavy loads. It features a 2000 kg rated capacity, 600 mm load center, electric drive unit with a 5/6 Km/h traction speed, and 1530 mm turning radius, allowing for quick and secure transport. The butterfly release electric brake ensures excellent braking performance. Its 1495mm wheelbase provides exceptional stability for even the heaviest loads. The driving wheel Ø230x75mm and load wheel Ø80x70mm ensure smooth maneuverability and the 200mm max. lift height provides reliable accuracy. Built for efficiency, this truck is 1856mm in length, 730mm in width, and features 1150X180X50mm forks. With its 1150x180x50 mm fork dimensions and 6/15% grade ability, this pallet truck will provide a powerful and safe lift every time. Pronix Electric Pallet Truck 2 Ton PNXEPT-20SD offers a 600mm load center and a self-weight of 320Kg.

FAILED

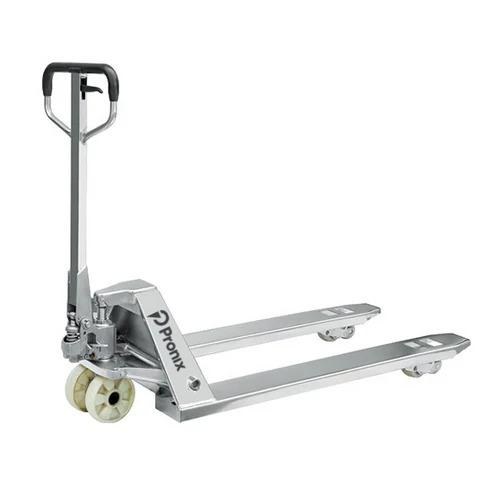

Pronix Stainless Steel Hand Pallet Truck 2.5 Ton with Fork Length 1150x550mm PNXPT-25SS Specification: Brand - Pronix Type - Hand Pallet Truck Model No. - PNXPT-25SS Capacity - 2.5 Ton Material - Stainless Steel Minimum Fork Height - 85mm Maximum Fork Height - 195mm Total Width - 550mm Fork Length - 1150mm Wheel - Nylon Wheels Weight - 65-80 Kg Description: Pronix Stainless Steel Hand Pallet Truck is a heavy-duty material handling solution that has a 2.5 ton capacity and is built from strong, durable stainless steel. This Pronix Stainless Steel Hand Pallet Truck is perfect for heavy-duty transportation and handling. With a capacity of 2.5 tons and made of stainless steel for added durability, this pallet truck offers maximum efficiency and strength. Its ergonomic design features a minimum fork height of 85 mm and a maximum fork height of 195 mm, along with nylon wheels and a total width of 550 mm and a fork length of 1150 mm. The product weights 80 kg, making it an ideal choice for commercial purposes.

FAILED

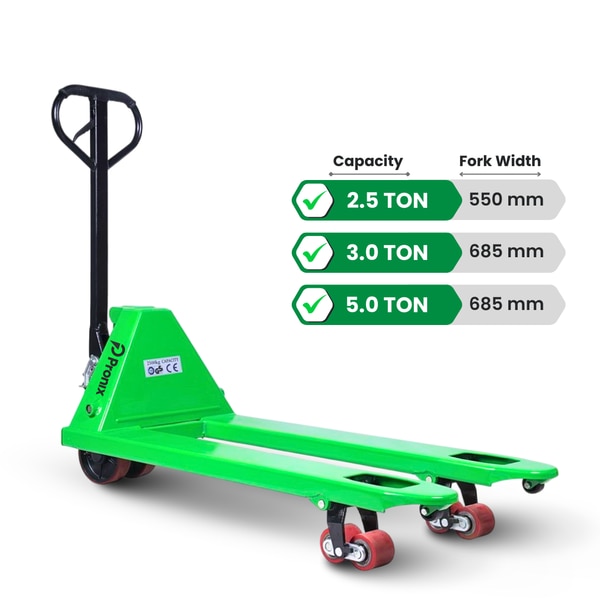

Pronix Hand Pallet Truck 5 Ton With Fork Length 1210x685mm PNXPT-50 Specification: Brand - Pronix Type - Hand Pallet Truck Model No. - PNXPT50 Capacity - 5000 Kg Fork Length - 1210 mm Overall Fork Width - 685 mm Single Fork Width - 180 mm Ground Clearance - 30 mm Total Height - 1200 mm Turning Radius - 1265 mm / 210° Overall Raise From Ground - >200 mm Lowered Fork Height - 90 mm Overall Length - 1650 mm Lifting Capacity (Per Stroke) - 20 mm Material / Material Thickness - MS / 6 mm Rollers Size - 80 x 70 mm Steering Wheel Size - 200 x 55 mm Rollers - Nylon Wheel Type - Nylon Entry / Exit Roller - Yes Distance Between Forks - 330 mm Pump Material - Cast Steel, Machined Pump Finish - Powder Coating Steering Hub - Aluminium Hub Proportional Lowering - Yes Support Wheels - Yes Quick Lift - Yes Sharp Edges - No Net Weight - 122 Kg Description: Hand pallet trucks are specially designed for smooth horizontal movement inside the operating areas. Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time. Fork Lowering speed is controllable, operated by hand control. Standard powder coat finish which is resistant to chips and normal corrosion. Pronix hand pallet truck is a hydraulic pallet truck that can hold up to 5000 kg. It has a fork length of 1210 mm. This hand Pallet truck comes with Nylon Wheels of 80 x 70 mm. The material thickness is 5mm and the steering wheel size is 200 x 50 mm. The single fork width is 160 mm and the lifting capacity per stroke is 12 mm. Its minimum turning radius is 1265 / 210° Degree.

FAILED

Pronix Hand Pallet Truck 3 Ton PNXPT30 Specification: Brand - Pronix Type - Hand Pallet Truck Model No. - PNXPT30 Capacity - 3000 Kg Fork Length - 1150 mm Overall Fork Width - 685 mm Single Fork Width - 160 mm Ground Clearance - 30 mm Total Height - 1200 mm Turning Radius - 1265 mm / 210° Overall Raise From Ground - >200 mm Lowered Fork Height - 90 mm Overall Length - 1550 mm Lifting Capacity (Per Stroke) - 10 mm Material / Material Thickness - MS / 4 mm Rollers Size - 80 x 70 mm Steering Wheel Size - 200 x 55 mm Rollers - Nylon Wheel Type - Nylon Entry / Exit Roller - Yes Distance Between Forks - 370 mm Pump Material - Cast Steel, Machined Pump Finish - Powder Coating Steering Hub - Aluminium Hub Proportional Lowering - Yes Support Wheels - Yes Quick Lift - Yes Sharp Edges - No Net Weight - 70 Kg Description: Hand pallet trucks are specially designed for smooth horizontal movement inside the operating areas. Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time. Fork Lowering speed is controllable, operated by hand control. Standard powder coat finish which is resistant to chips and normal corrosion. It features a steering wheel that measures 200 mm wide and 55 mm thick, and the fork width is 685 mm. The lifting height per stroke is 12 mm, which can be lowered to 75 mm. It is ideal for light loads, with the capacity to support up to 3000 kg. Its turning radius is 1265 / 210° Degree and the distance between forks is 350 mm

FAILED

Pronix Hand Pallet Truck 2.5 Ton With Fork Length 1150x550mm PNXPT-25 Specification: Brand - Pronix Type - Hand Pallet Truck Model No. - PNXPT25 Capacity - 2500 Kg Fork Length - 1150 mm Overall Fork Width - 550 mm Single Fork Width - 160 mm Ground Clearance - 30 mm Total Height - 1200 mm Turning Radius - 1265 mm / 210° Overall Raise From Ground - 200 mm Lowered Fork Height - 85 mm Overall Length - 1550 mm Lifting Capacity (Per Stroke) - 10 mm Material / Material Thickness - MS / 3.8 mm Rollers Size - 80 x 70 mm Steering Wheel Size - 180 x 50 mm Rollers - PU Wheel Type - PU Entry / Exit Roller - Yes Distance Between Forks - 230 mm Pump Material - Cast Steel, Machined Pump Finish - Powder Coating Steering Hub - Aluminium Hub Proportional Lowering - Yes Support Wheels - Yes Quick Lift - Yes Sharp Edges - No Net Weight - 70 Kg Description: Designed for ease of use, our long-lasting trucks allow for the safe and efficient movement of goods with very little effort. High load-carrying capacity PU wheel rollers to protect floors. Heavy duty and reinforced forks for the greatest strength and durability. Standard powder coat finish which is resistant to chips and normal corrosion. It features a steering wheel that measures 180 mm wide and 50 mm thick, and the fork width is 550 mm. The lifting height per stroke is 12 mm, which can be lowered to 65 mm. It is ideal for light loads, with the capacity to support up to 2500 kg. Its turning radius is 1265 / 210° Degree and the distance between forks is 250 mm.
